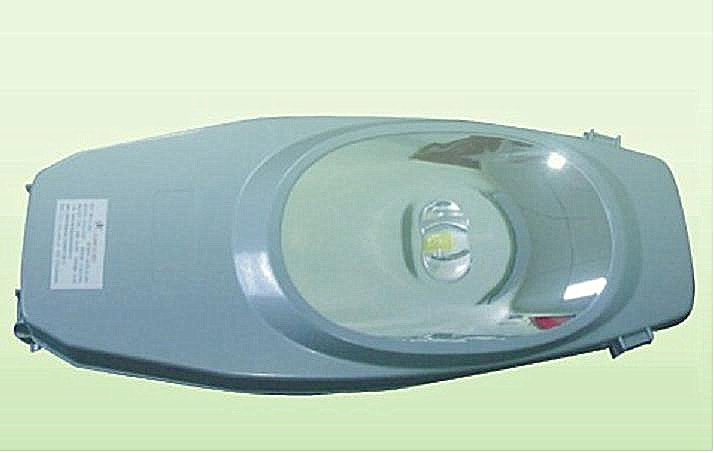

90w high power LED street light

MOQ ：10 piece

Lead Time ：20 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Western Union

Departure Port : shenzhen

Product details

Supply Ability

Supply Ability：2000 piecesWarranty(Year)：1 Year

Packaging & Delivery

Length：76.5 cmWidth：31.5 cm
Height：21.5 cm
Packaging：1 piece

Product Specifications

Product Description

Our led street light source adopt "Bridgelux" high-end integrated chips, and natural heat dissipation design lamp body, and expensive "Dow Corning" thermal conductive adhesive.

In addition, professional encapsulation technology.

You will easily find the product good performance.

The brightness of "LED80w" is equal to "250w high pression sodium lamp".

Advantages of our "LED solar and wind hybrid street light".

*Safety
Low working voltage, no harmful light to eyes and skin.
*Power saving
Natural energy supply switched by total Automatic controller, no need manual operation and maintaining.
*High performance
"Bridgelux" high-end integrated chip & "Dow corning" thermal conductive adhesive
& natural heat dissipation lamp body &" meanwell" power of taiwan & professional encapsulation
*Environment friendly
nonradiative; noiseless;

Technical parameter name and units	参数数据 Parameter Date
Model	YJ-LD-1066
Working life（hours）	50000Hrs
rated dissipation（W）	90W
Working temperature（celsius）	-30℃ to +50℃
Best working temperature（celsius）	-0℃ to +30℃
Deposit temperature（celsius）	-65℃ to +50℃
Input voltage(V)	AC/85-265V
Working voltage（V）	DC/36V
Working current（A）	0.41A
Colour temperature（K）	2700K-7000K
Luminous flux（LM）	9900-10800LM
IP grade	IP66

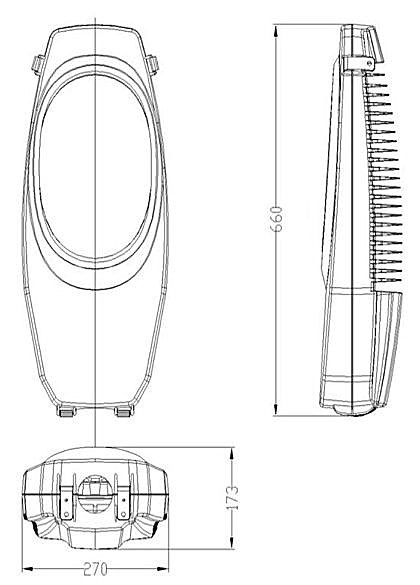

External dimension（mm）	660270173
Package dimension（mm）	765×315×215
Gross weight（KG）	12.0KG
Averge illumination （LUX）	＞35
illuminance uniformity（Emin/Eav）	＞0.50
COSF power factor	﹥0.92
canning materrial	aluminium
the brand of light source	Bridgelux of America
the brand of power source	MeanWell of Taiwan, China
Warranty time	three years for Overall lamp
